RUTLAND TS4204 Medium Contract Overhead Closers, Power Adjustable Size 2-4, Delayed Action & Backcheck, CE Marked

Description

The RUTLAND TS4204 is a contract quality, medium duty, multi-purpose overhead door closer for most applications.

Has built-in adjustable back-check and delayed action functions.

Closing speed and latching speed both independantly valve adjustable.

Max Door Size 2100x1100mm

Power Rating Size EN2 - EN4, adjustable by spring.

Max Door Weight 80kg

Rack & pinnion mechanism

180 degree opening angle

Internal body unit 248mm long x 59mm high x 42mm projection
Cover cap 297mm long x 68mm high x 45mm projection.


CE Marked. Suitable for Fire Door applications.
Tested to BS EN 1634 for 30, 60 & 120 minute door sets.
Tested to BS EN 1154 performance standard. Classified as 484/2113.
Test certificates available on request.

Universal Fitting with Parallel Arm bracket provided.
All fixings and instructions for timber door installtion are included.

Fig 1 Inward Opening Mechanism fitted on pull side of door
Fig 66 Outward Opening Mechanism fitted on push side of door
Fig 66 Inward Opening Mechanism fitted on door frame head

Supplied as a complete kit with flat-bar armset and oblong cover in Silver paint finish or Satin Nickel, Polished Nickel or Polished Brass plated finishes.

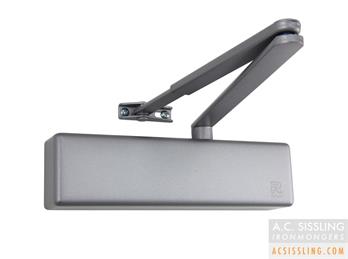

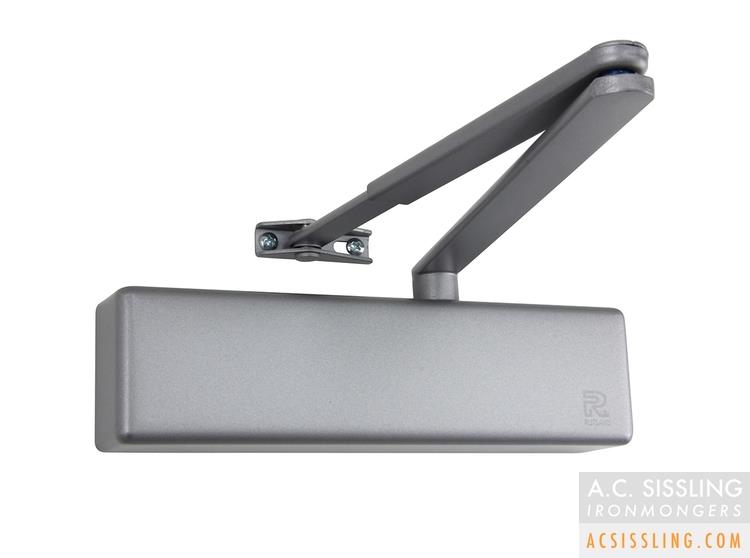

TS.4204DABC.SLFB.SESE - Silver Paint Finish

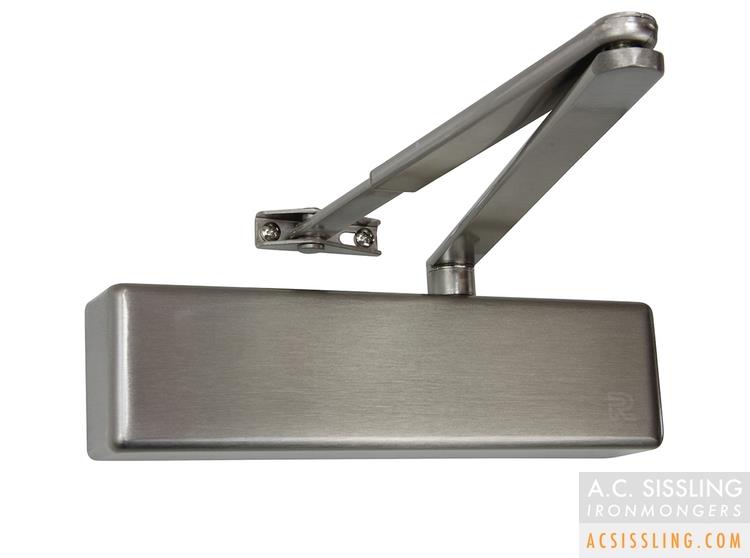

TS.4204DABC.SLFB.SNPSNP - Satin Nickel Finish

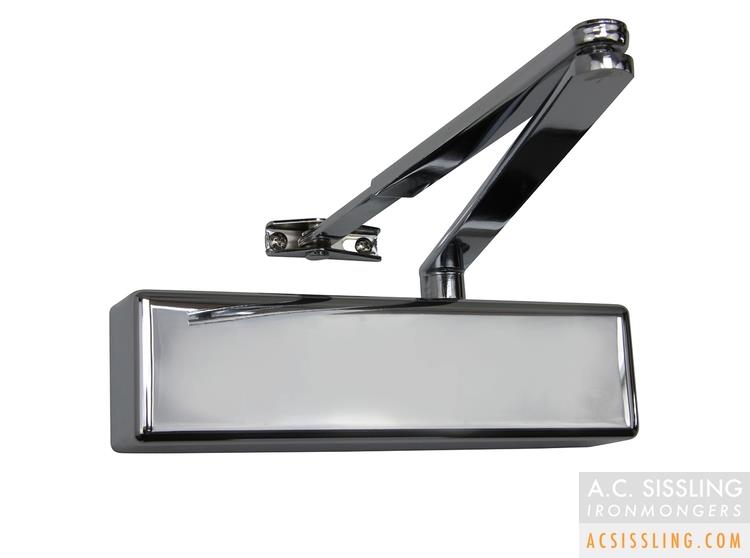

TS.4204DABC.SLFB.PNPPNP- Polished Nickel Finish

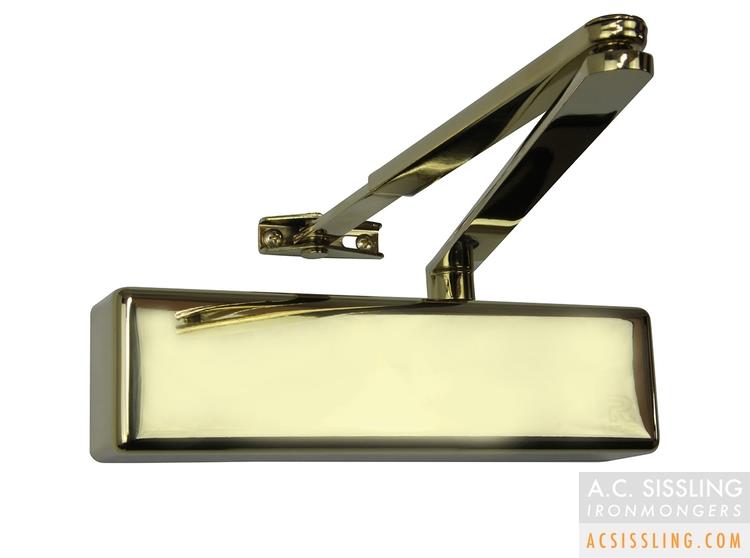

TS.4204DABC.SLFB.EBEB - Brass Finish

Optional extras (see linked items below):

Drop mounting plate for doors with narrow top rails.

Intumescent Mounting Pad

Product Code: R1000701

Qty Price Per
153.59 inc. VATEACH
348.23 inc. VATEACH
645.55 inc. VATEACH
1242.88 inc. VATEACH
1840.20 inc. VATEACH
2437.51 inc. VATEACH

All prices are subject to VAT

Live Stock Unavailable In Stock Please Contact us For Availability Checking Stock
