LAMP J95 Very Heavy Duty Concealed Hinges Full Overlay 21-25mm 95 Deg Opening 40mm Cup

Description

Lamp Brand J95 Concealed Hinge

A concealed hinge for larger doors with a significantly increased load bearing capacity.

Ideal for wardrobe doors up to 800mm wide and weighing up to 25kgs with just two hinges.

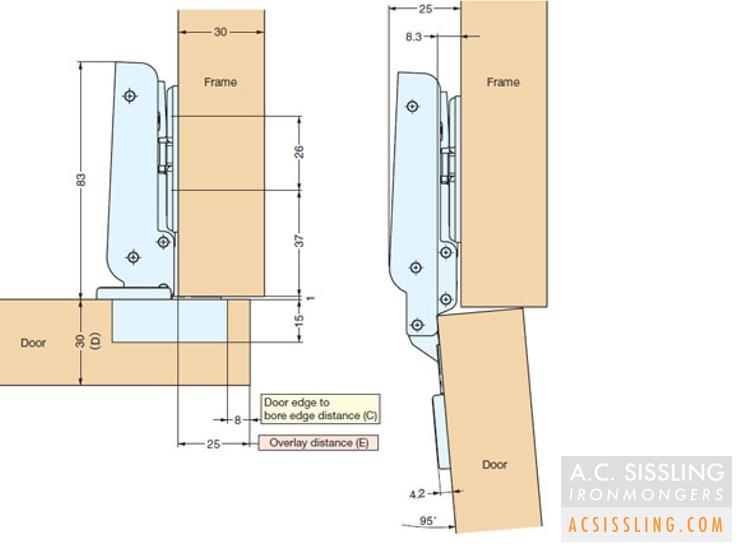

Provides 21-25mm of overlay, where the bore edge distance is in the range of 3-8mm

Mounts into a 40mm hole.

Only two hinges needed for 25kg door.

For doors up to 800mm wide.

Available is Sprung (catched) and Unsprung (no catch) versions.

** NB - Mount Plate Is NOT Included & Must Be Ordered Separately - Please See Linked Item Below **

Product Code: S01160026731

Qty Price Per
1£10.70EACH
2£9.63EACH
12£9.10EACH
25£8.56EACH
50£8.03EACH
100£7.49EACH

All prices are subject to VAT

Live Stock Unavailable In Stock Usually Ships in 2-3 Working Days Checking Stock
