Salice AIR Compact Hinges 3D Adjustable 105 Degree Opening

Description

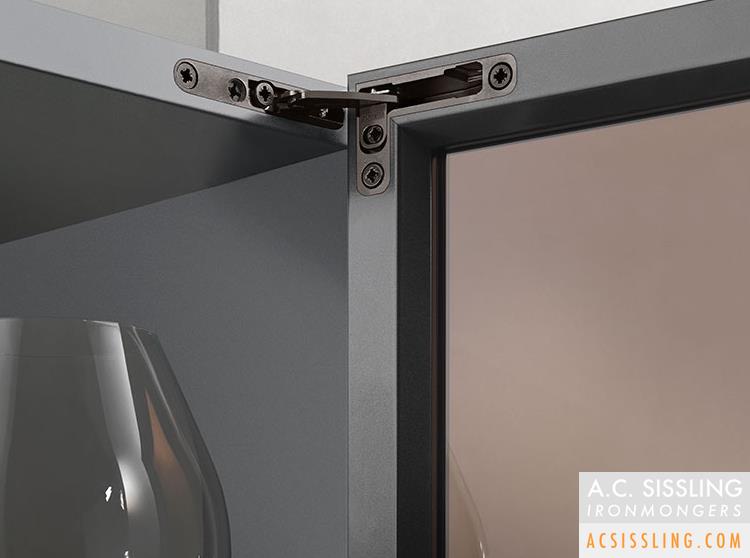

The all-new AIR hinges from Salice, with integrated Soft Close mechanism or Push to Open mechanism are small and compact. They are fitted to the top and bottom panel of the cabinet and are practically invisible.

Fully adjustable in 3 directions

For min. 18 mm thick wooden doors and for aluminium-framed doors.

Max. door weight 20 Kg.

Max. dimensions of the door : height 2100 mm, width 600 mm.

16.5 mm deep metal cup.

L (gap between door and carcase) = 2.5 mm

105° opening.

Possible drilling distance on the door (K): from 3 to 6 mm for wooden doors.

Fixed K (Drilling distance) = 4 mm for aluminium-framed doors (DEL6LP300_).

Supplied as a bagged set for one door, including fixing screws.

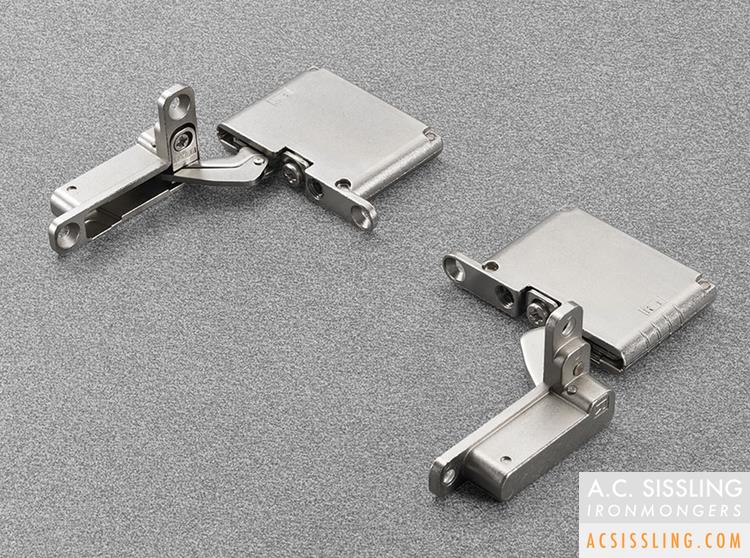

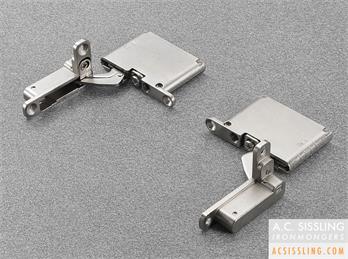

CEL6XE9XXV - Soft Close - Nickel Plated Finish

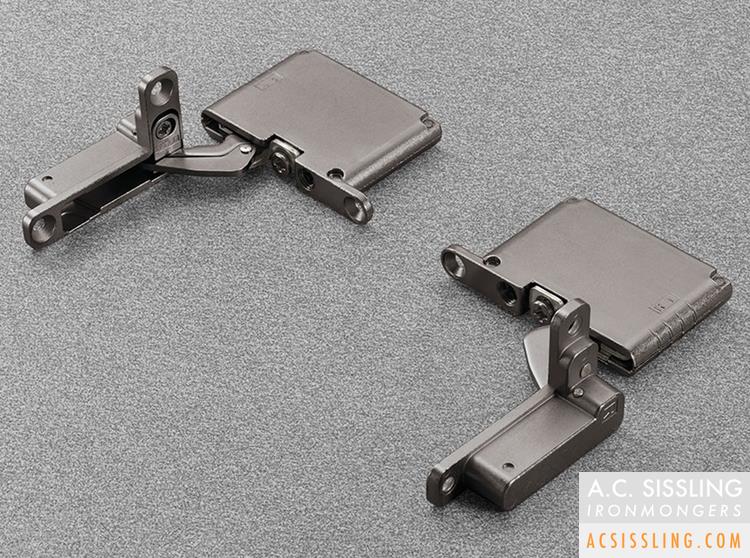

CEL6XE6XXV - Soft Close - Titanium Finish

CELPX99XXV - Push to Open - Nickel Plated Finish
CELPX66XXV - Push to Open - Titanium Finish

Product Code: S05CEL6XE9XXV

Qty Price Per
1£41.66SET
2£37.49SET
4£35.41SET
8£33.33SET
12£31.24SET
24£29.16SET

All prices are subject to VAT

Live Stock Unavailable In Stock Usually Ships in 5-7 Working Days Checking Stock
