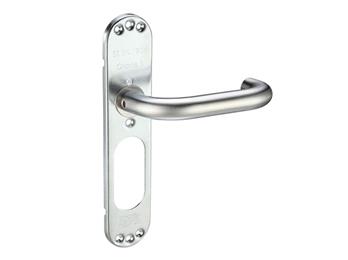

Zoo ZCSIP Series RTD Levers on LONG Backplates (Square or Radius) 220 x 50mm

Description

A range of architectural quality 19 & 22mm Return to Door (RTD) safety levers on LONG 220 x 50mm backplates.

Good for covering up marks and holes from previous smaller backplate lever furniture.

Comprises of sprung 19mm diameter tubular SSS levers on zinc plated steel inner plates with press-fit SSS cover plates to choice.

Steel inner plate 218 x 48mm, 220 x 50mm when fitted with cover plate.

Grade304 Satin Stainless Steel.

M6 HESO grub screws, M4 male/female fixing screws and woodscrews supplied.

Priced and sold as a PAIR for one door.

BS EN 1906 Grade 3

BS EN 1634-1

Fire tested for use with 30 and 60 minute wood doors.

** PLEASE ORDER LEVER INNERS AND COVER PLATES SEPARATELY FROM DROP-DOWN SELECTION LIST **

ZCSIP19 - 19mm Dia Levers on Inner Plates ONLY
ZCSIP22 - 22mm Dia Levers on Inner Plates ONLY

ZCS31SS - Square Standard Lock 57mm Backplates ONLY
ZCS31EPSS - Square Euro Profile 47.5mm Backplates ONLY
ZCS31EPSS72 - Square Euro DIN Profile 72mm Backplates ONLY
ZCS31OPSS - Square Oval Profile 48.5mm Backplates ONLY
ZCS32SS - Square Latch Backplates ONLY
ZCS33SS - Square Bathroom Backplates ONLY
ZCS33SS78 - Square DIN Bathroom 78mm Backplates ONLY

ZCS31RSS - Radius Standard Lock 57mm Backplates ONLY
ZCS31EPRSS - Radius Euro Profile 47.5mm Backplates ONLY
ZCS31EPRSS72 - Radius Euro DIN Profile 72mm Backplates ONLY
ZCS31OPRSS - Radius Oval Profile 48.5mm Backplates ONLY
ZCS32RSS - Radius Latch Backplates ONLY
ZCS33RSS - Radius Bathroom Backplates ONLY
ZCS33RSS78 - Radius DIN Bathroom 78mm Backplates ONLY

Product Code: Z03ZCSIP19
