From The Anvil Mort/Rim Knob BLK 33250 33251 33252

Description

Our knobs come unsprung. They are solid cast, not hollow and have loose roses to enable them to be used with a rim lock (discard one rose) or use with a mortice lock.

They have treaded spindles to take adjustment for various door thicknesses and lock firmly with a grub screw.

Each set comes complete with fixing screws, which are concealed for improved appearance,together with two escutcheons.

For best results the centre of the knob should be a minimum of 3" from the edge of the door.

Heavy Duty latches 4" or 5" are recommended for maximum efficiency.

Supplied with necessary fixing screws. The GRUB SCREW should locate on the "V" in the shaft and not on the threaded part.

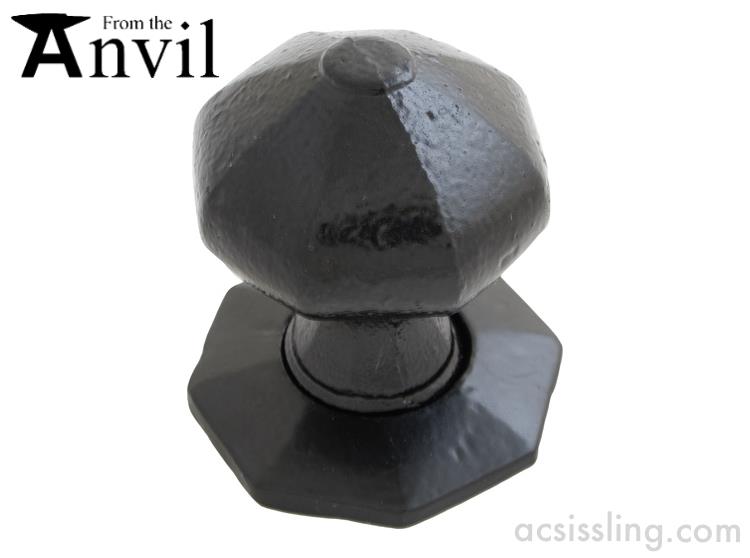

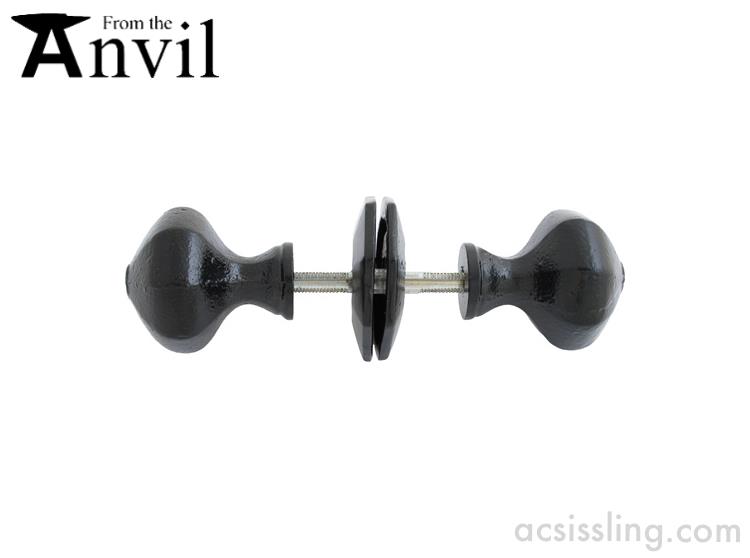

33250 - Knob Size: 2 1/8" (54mm) Projection: 2 1/2" (63mm) Rose Size: 2 1/4" (57mm)

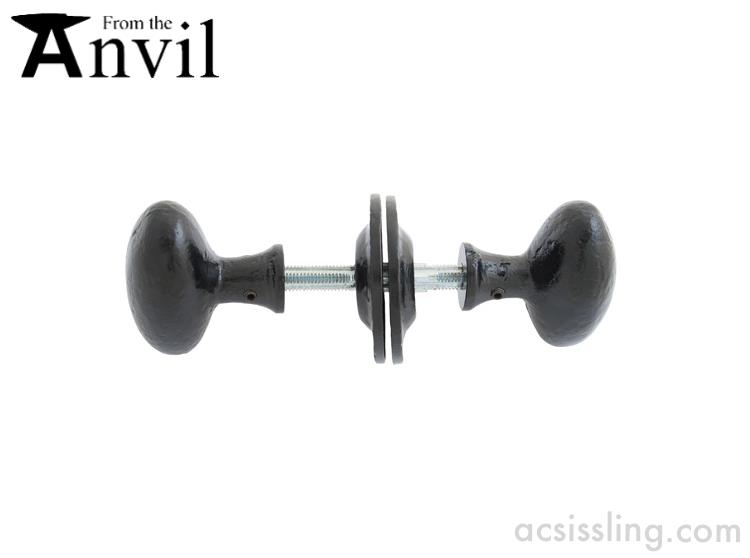

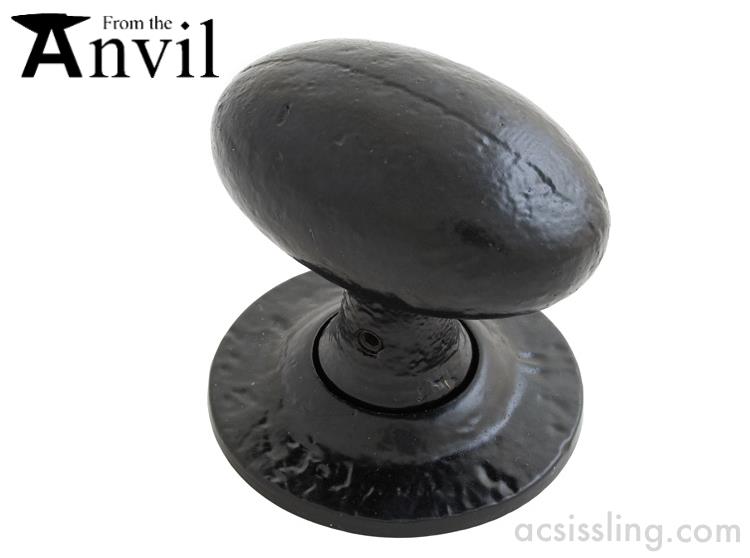

33251 - Knob Size: 2 1/2" x 1 1/2" (63mm x 38mm) Projection: 2 1/8" (54mm)
Rose Size: 2 3/8" (60mm)

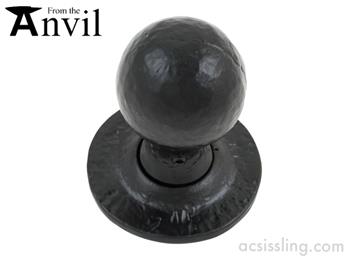

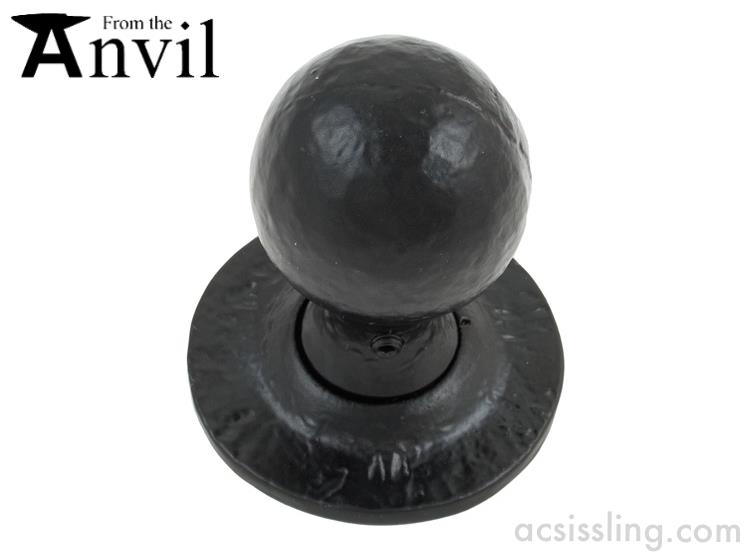

33252 - Knob Size: 1 5/8" (41mm) Projection: 2 3/4" (70mm) Rose Size: 2 3/8" (60mm)

8mm Threaded Spindle supplied with knobs.

Product Code: M0333250

Qty Price Per
1£30.70SET

All prices are subject to VAT

Live Stock Unavailable In Stock Usually Ships in 5-7 Working Days Checking Stock
