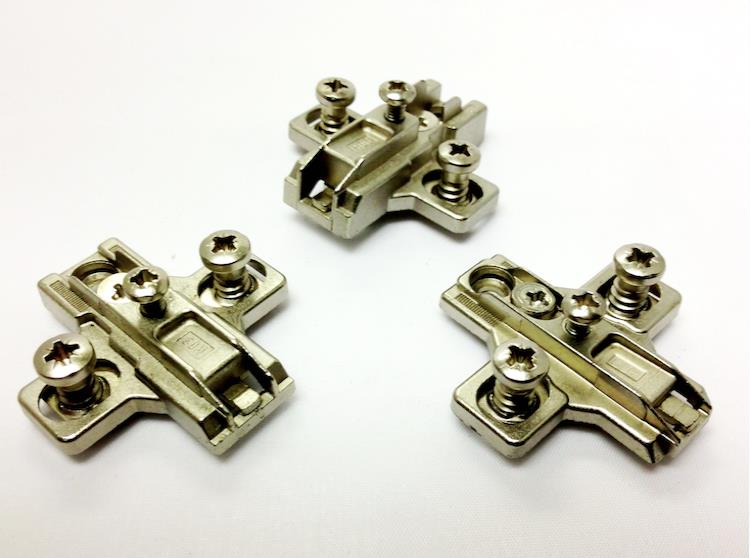

SALICE B2R3G Diecast Mount Plates with Pre-mounted EURO Screws

Description

This version is fitted with pre-mounted Euro screws for installation on cabinets with pre-drilled 5mm diameter holes on 32mm pitch centres

These plates are suitable for hinge series 200, 400, 700, F & M.


Available in three effective heights:
B2RGE09 - 0mm - Typically used for FULL and 1/4 Overlay applications.
B2GRE39 - 3mm - Typically used for FULL 1/4 and 1/2 Overlay applications.
B2GRE69 - 6mm - Typically used for INSET door applications.

We supply several different models of hinge plate but would recommend our Quality Die Cast Mount Plates as most suitable for the majority of applications.
The die cast plates gives integral vertical adjustment by cam-action screw which complements the horizontal adjustment on the hinge itself

Product Code: S05B2RGE09

Qty Price Per
11.36 inc. VATEACH
251.15 inc. VATEACH
501.02 inc. VATEACH
1000.89 inc. VATEACH
2000.82 inc. VATEACH
4000.68 inc. VATEACH

All prices are subject to VAT

Live Stock Unavailable In Stock On Order Checking Stock
