Proxxon FF500/BL-CNC Miller 230v c/w CNC Contoller & WINDOWS®Compatible Software 102372 / 24360

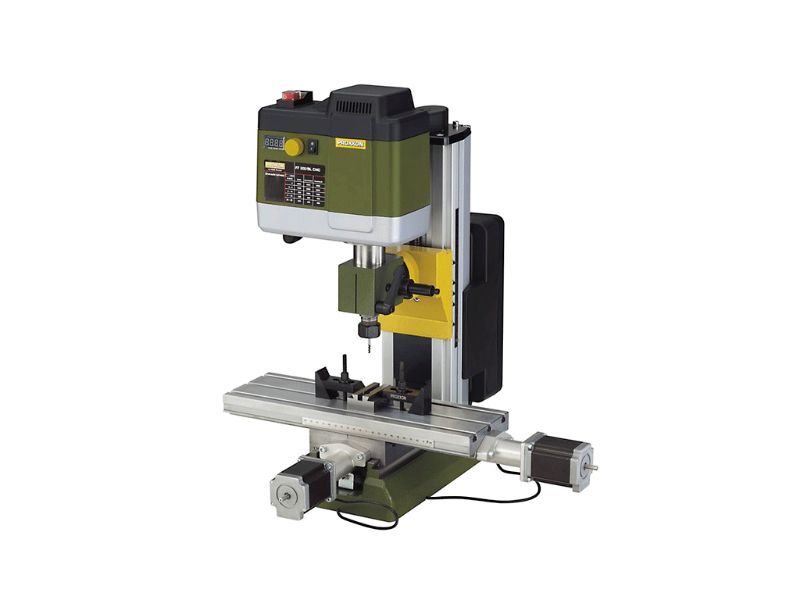

Proxxon Micro Miller FF 500/BL-CNC

Key Features:

• Powerful step motors driving compound table and milling head

• The package includes user-friendly software that runs under WINDOWS®

• Machining starts at the click of a mouse

• This machine must be installed by AT&M engineer

• Solid plane-milled table in steel (400 x 125mm) with 3 T-slots

• Very accurate European made machine

• Supplied with CNC control unit, CNC programme software, all connecting cables and 4 ER20 steel collets (6, 8, 10 and 12mm) plus a detailed manual

This CNC MICRO Mill features double roller bearing, recirculating ball spindles at all 3 axes. Each axis has a powerful step motor driving the compound table and the milling head. The package includes user-friendly software that runs under WINDOWS®. The CNC control unit controls the step motors of the machine and connects to a PC via RS 232 interface (or a USB adaptor). Powerful microprocessors within the control unit ensure that the motors always provide enough power for any machining processes. Two freely usable output relays in the casing of the control unit provide facilities for control of additional functions. The CAD window automatically displays when the programme starts. At the click of a mouse, the programming converts the finished drawing into instructions for the machine. Machining can start immediately.

The FF 500/BL mill features the latest technology with a brushless direct drive. It is quiet and vibration-free in use with high precision. It boasts a wide speed range, variable from 200 to 4,000rpm, with a clear 4 digit display. Electronic speed control and speed sensors guarantee high torque when using large milling cutters at lower speeds.

The solid column has dovetail slideways with adjustable jib strips for smooth operation and zero play. The milling head can be angled both left and right by 90° either way. The spindle sleeve is lockable and pre-machined should you wish to fit the optional fine feed. The spindle uses ER20 collets guaranteeing trouble-free tool holding and maximum potential. The FF 500/BL includes 4 ER20 collets (6, 8, 10 and 12mm). The solid plane-milled steel compound table features 3 MICROMOT standard T-slots. Step motors replace the hand wheels; however, manual machining is still possible with the help of cursor buttons.

The mill comes complete with CNC control unit, CNC programme software, all connecting cables and 4 ER20 steel collets (6, 8, 10 and 12mm) plus a detailed manual.

Specification for PROXXON FF 500/BL-CNC MICRO Mill:

Diameter of Column 120 mm x 100 mm
Head Tilt 90° - 0° - 90°
Model FF 500/BL-CNC
Motor 400 W Brushless
Nett Weight 47 kg
Overall L x W x H 750 mm x 550 mm x 550 mm
Spindle Speed 200 - 4,000 rpm
Spindle Travel 30 mm
Table Size 400 mm x 125 mm
Throat 125 mm
Travel X Axis 290 mm
Travel Y Axis 100 mm
Travel Z Axis 200 mm

SKU: 24 360

Product Code: B12PX102372

Qty Price Per
14,949.68 inc. VATEACH

Live Stock Unavailable In Stock Please Contact us For Availability Checking Stock
