Proxxon FD150/E Micro Lathe 502015 / 24150
The Proxxon FD150/E is a compact metal working lathe for facing and longitudinal turning, boring, taper turning, parting and drilling.
The high maximum speed (5000rpm) allows very small diameters to be machined.
The lathe has an accurate bed made from cast aluminium and the spindle from diecast aluminium.
It is run using a powerful, quiet running DC motor which has a two stage belt drive used in conjunction with an electronic speed control to achieve the full speed range (500-5000rpm).
The main spindle runs with precision bearings and has a continuous bore of 8.5mm.
A three jaw self-centring chuck is supplied with an inside jaw range of 1.5-32mm and 12-65mm outside.
The tailstock comes with a live centre and has an MK0/short bore.
There is a quick change tool post with the machine accepting 6mm tooling.
Headstock suitable to take industry standard ER11 collets.
Product Code: B12PX502015
All prices are subject to VAT
Proxxon 6-Piece Lathe Cutting Tool Set 502016 / 24524
From £49.98 or less
Proxxon ROHM Chuck for FD150/E Lathe 502017 / 24152
From £15.98 or less
Proxxon ER11 Collet Set for FD150/E Lathe 502018 / 24154
From £76.98 or less

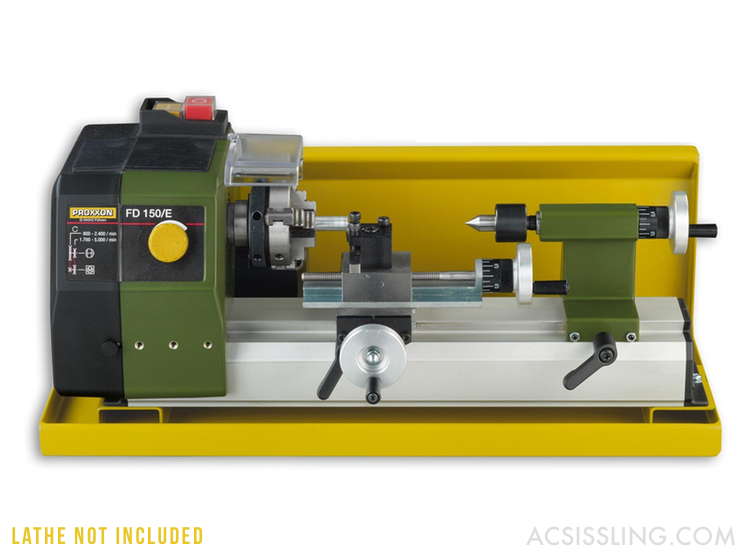

Proxxon Splash Guard & Chip Collecting Tray for FD150/E 505902 / 24156
From £79.90 or less
Proxxon 4-Jaw Self Centreing Chuck for FD150/E Lathe 107269 / 24158
From £56.97 or less
